Product Details
Place of Origin: China
Brand Name: Haisic
Certification: CE
Model Number: HS100KW/215KWH
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD28000-USD45000
Packaging Details: wood pallet
Delivery Time: 45-60days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram,
Supply Ability: 200PCS/month
Capacity: |
215KWH Hybrid Energy Storage System |
Type: |
PCS+BATTERY Energy Storage Cabinet |
Product Name: |
100kw/215kwh BESS |
Oem: |
Yes |
Cycle Life: |
>6000 Times |
Warranty: |
5years |
Capacity: |
215KWH Hybrid Energy Storage System |
Type: |
PCS+BATTERY Energy Storage Cabinet |
Product Name: |
100kw/215kwh BESS |
Oem: |
Yes |
Cycle Life: |
>6000 Times |
Warranty: |
5years |
Product name: 100kw/215kwh BESS system lifepo4 battery energy storage system including MPPT PCS BMS EMS Battery
| Battery parameter | ||
| Cell type | LFP 3.2V/280Ah | |
| Battery pack capacity | 43.008KWh | |
| Cluster capacity | 215KWH | |
| Battery voltage range | 627V~864V | |
| Battery cluster number | 2 | |
| AC parameter | ||
| Rated AC power | 100KW | |
| Max. power | 110KW | |
| THDI | 3% | |
| DC component | ＜0.5%Ipn | |
| Rated grid voltage | 380V | |
| Power factor | ＞0.99 | |
| Power factor range | -1~1 | |
| Rated frequency | 50Hz | |
| System parameter | ||
| Max. efficiency | ≥96% | |
| Charge/discharge speed | 0.5C | |
| Discharge depth | 95%DOD | |
| Cycle times | 6000 | |
| Charge/discharge switching time | ＜100ms | |
| Comm. port | RS485 | |
| Protection level | IP54 | |
| Cooling | force fan cooling | |
| Temperature | -25℃~55℃ | |
General
Capacity: 100KW/215KWh；

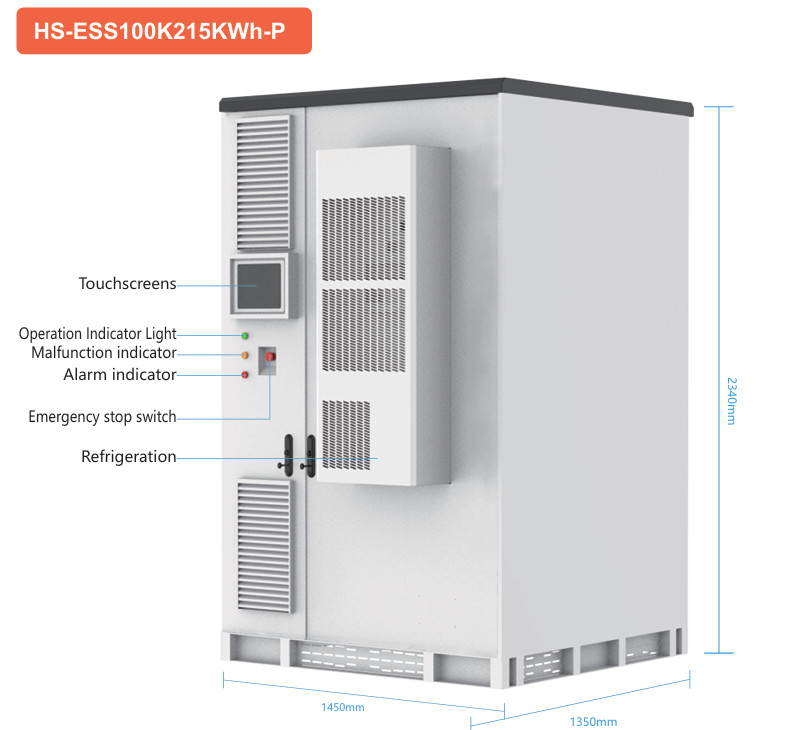

BESS uses customized outdoor cabinet; The container has battery compartment (battery cluster, BMS, illuminating system, air conditioner system, fire safety system and surge protection devices etc...); AC compartment (PCS, EMS, Transformer, Switches, Busbar, Cables etc...).
BESS can be using for peak shaving, energy back up, virtual capacity increase...
PCS Capacity
Total PCS capacity is 100KW; which contains 1*100KW PCS. Every single PCS connects to 1 battery cluster.
Battery cluster
280AH cell;
Battery Pack:1P48S,280AH×3.2V×48=43.008KWH; 3.2V*48PCS=153.6V
Battery cluster: 5 battery modules 153.6V*5=768V
2 Battery culsters with parallel: 768V/215kwh
