Product Details
Place of Origin: Guangdong, China
Brand Name: Haisic
Model Number: HS-GS-10.5KWH
Payment & Shipping Terms
Minimum Order Quantity: 10000 watts
Price: $0.69/watts 10000-99999 watts
Packaging Details: Box packing
Supply Ability: 1000 Piece/Pieces per Month
Warranty: |
5years, 5years |
Free Installation Service: |
NO |
Application: |
Home, Solar Power System Home |
Solar Panel Type: |
Monocrystalline Silicon |
Battery Type: |
Lithium Ion |
Controller Type: |
MPPT |
Mounting Type: |
BIPV Mounting |
Load Power (W): |
10KW |
Output Voltage (V): |
220V,230V,240 |
Output Frequency: |
50HZ/60HZ |
Work Time (h): |
24Hours |
Certificate: |
CE,CETL,ROHS,FC |
Pre-sales Project Design: |
Y |

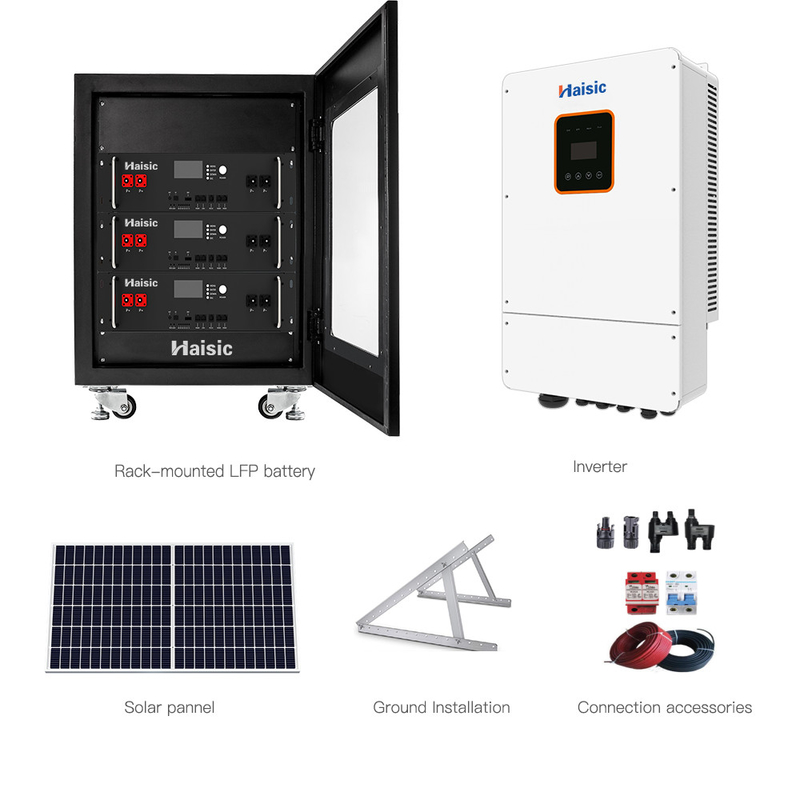

Product Name: |
Hybrid Solar System |
Battery: |
10kwh Lifepo4 Battery |
Solar Panel: |
Monocrystalline Solar Panel |
Inverter: |
3L/N/PE |
Keyword: |
Photovoltaic Solar Energy System |
Type: |
Hybrid System AC |
Specification: |
Storage Solar System |
Protection: |
IP65 |
Warranty: |
5years, 5years |
Free Installation Service: |
NO |
Application: |
Home, Solar Power System Home |
Solar Panel Type: |
Monocrystalline Silicon |
Battery Type: |
Lithium Ion |
Controller Type: |
MPPT |
Mounting Type: |
BIPV Mounting |
Load Power (W): |
10KW |
Output Voltage (V): |
220V,230V,240 |
Output Frequency: |
50HZ/60HZ |
Work Time (h): |
24Hours |
Certificate: |
CE,CETL,ROHS,FC |
Pre-sales Project Design: |
Y |
Product Name: |
Hybrid Solar System |
Battery: |
10kwh Lifepo4 Battery |
Solar Panel: |
Monocrystalline Solar Panel |
Inverter: |
3L/N/PE |
Keyword: |
Photovoltaic Solar Energy System |
Type: |
Hybrid System AC |
Specification: |
Storage Solar System |
Protection: |
IP65 |
Energy storage battery parameters | ||
Model | HS-GS5000W | |
Basic Parameter | ||
Rated Voltage（V） | 51.2 | |
Rated Capacity（Ah） | 100 | |
Rated Energy（Wh） | 5120 | |
Operation Parameter | ||
Voltage Range（V） | 44.8-56 | |
Charge Voltage Range（V） | 55.2-56 | |
Cut-off Voltage（V） | 44.8 | |
Recommend Charge Current（A） | 50 | |
Max Charge Current（A） | 100 | |
Max Discharge Current（A） | 100 | |
Physical Parameter | ||
Dimension：L*W*H（mm） | 470*452*160 | |
Weight（kg） | 46 | |
Communication Port | RS485，CAN | |
Display | LED+LCD | |
Terminal | Plug-in | |
Compatible inverter | Growatt,Goodwe,DEYE,SRNE, Luxpower, Megarevo | |
Environment Parameter | ||
Humidity（%） | 5-95% RH | |
Charge Temperature Range（℃） | 0-45 | |
Discharge Temperature Range（℃） | -20-60 | |
Storage Temperature Range（℃） | -20-45 | |
Service Life | ||
Cycle Life | ＞6000 （0.5C@ 25℃，80% DOD） | |
Certification | ||
Safety & Certification | CE，EMC，TUV（IEC62619），UL1973 | |
Transportation | UN38.3 | |
