Product Details
Place of Origin: China
Brand Name: Haisic
Certification: CE, UL, FCC, RoHS
Model Number: HS AGV30
Payment & Shipping Terms
Minimum Order Quantity: 10PCS
Price: USD240
Packaging Details: paper box+outer carton
Delivery Time: 12-25days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram,
Supply Ability: 5000PCS/month
Capacity: |
768wh 25.6V/30AH |
Type: |
Customized Electric AGV Battery |
Product Name: |
AGV Lithium Ion Battery 25.6V 30AH |
Oem: |
Support |
Cycle Life: |
>3000 Times |
Warranty: |
2years |
Capacity: |
768wh 25.6V/30AH |
Type: |
Customized Electric AGV Battery |
Product Name: |
AGV Lithium Ion Battery 25.6V 30AH |
Oem: |
Support |
Cycle Life: |
>3000 Times |
Warranty: |
2years |
Product name:

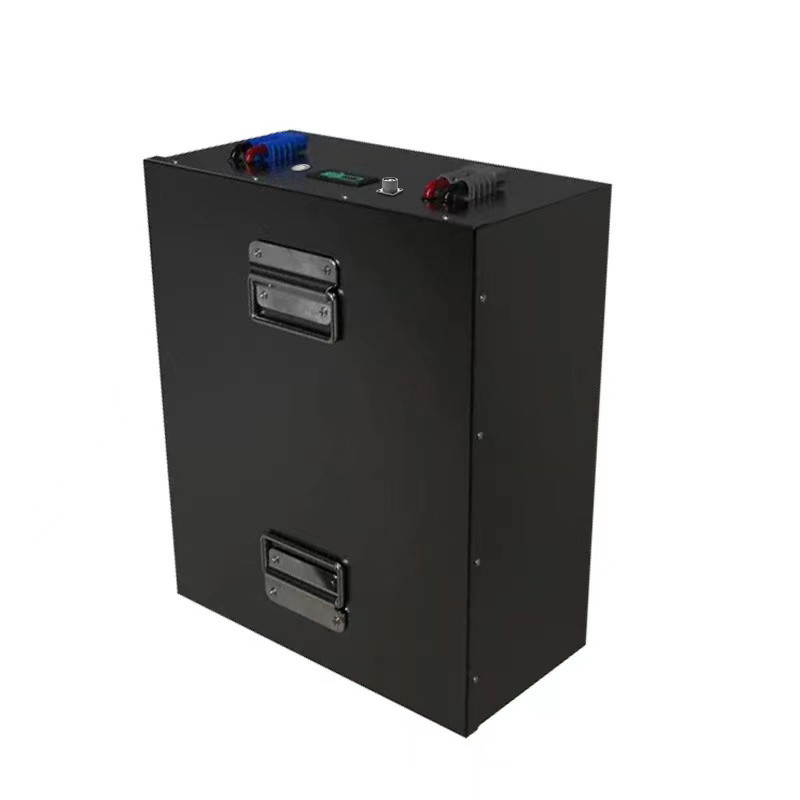

25.6V 30Ah Lifepo4 Battery Pack For AGV Electric Car with LCD indication fireproof
Feature:
1. Safe Battery Cell — This battery pack was designed with Automotive grade A quality battery cells which has been widely recognized as one of the safest battery technologies. The lithium ion chemistry features stable structures with low toxicity, well-defined performance, long-term stability .
2. Excellent performance — Our power battery pack has large capacity, low impedance, high power, good consistency,Speed up faster, more powerful climbing, and is widely used in electric bicycle, electric motorcycle, electric tricycle, electric forklift,Electric Vehicles, AGV, RGV vehicle and other fields.
3. Extended Cycle life — lithium ion battery has been proved to have excellent safety and cycle life.Our A quality lithium ion battery battery cells have more than 2500(3000~5000) cycle life for the battery packs,which means after 3000@80% DOD,there will still around 80% capacity left, You can use it for 5~8 years for normal Low frequency charging and discharging everyday.
4. OEM and ODM Services — Yes, we can provide products according to customer requirements.We can provide professional product design, development, production and processing services.
Spec:
|
Item
|
Rated performance
|
Note
|
|
|
Rated Voltage
|
25.6V | 3.2V*8S | |
|
Discharge Cut-off Voltage
|
20V | 2.5V*8S | |
|
Rated Capacity
|
30Ah | 1C Discharge,20V Cut-off | |
|
Limited Charge Voltage
|
29.2V | 3.65V*8S | |
|
Charge Method
|
CC-CV |
|
|
|
Standard Charge Current
|
15A | 0.5C30A(0~45℃) | |
|
Quick Charge Current
|
30A | 20~45℃ 1C | |
|
Standard Discharge Current
|
15A | 0.5C30A(25±2℃) | |
|
Max Discharge Current
|
60A | 25±2℃ 2C | |
|
Initial Internal Resistance
|
≦60mΩ |
AC 1kHz (AC Impedance)
|
|
|
Net weight of finished battery
|
8kg |
Electronic scale
|
|
|
With group requirements
|
10mV/0.1mΩ/<1Cmin*1%mAh | ||
|
Flame retardant rating of materials
|
V-0 | ||
|
Battery Size
|
See appearance size chart
|
Calipers
|
|
|
Operating Temperature
|
Charge
|
0˚C ～+60˚C |
Humidity65±20%
|
|
Discharge
|
-20˚C～+60˚C |
Humidity65±20%
|
|
|
Storage Temperature
|
Standing Storage
|
One year: 0~40℃ |
Humidity 65±20%
|
