Product Details
Place of Origin: China
Brand Name: Haisic
Certification: CE,FCC,ROHS,MSDS,UN38.3
Model Number: HS-JT5000W
Payment & Shipping Terms
Minimum Order Quantity: 10PCS
Price: USD2406-USD8500
Packaging Details: paper box+outer carton
Delivery Time: 35-45days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram,
Supply Ability: 2000PCS/month
Product Name: |
Thermal Energy Storage System 5KWH 10KWH |
Battery Type: |
51.2V 100AH For One Module |
Function: |
Stacked Lifepo4 Battery Energy Storage System |
Feature: |
Stacked 7pcs LFP Battery Module Max |
Cycle Life: |
10 Years Life Cycle. |
Compatible Inverter: |
Goodwe,Sol-Ark,SRNE,DEYE |
Product Name: |
Thermal Energy Storage System 5KWH 10KWH |
Battery Type: |
51.2V 100AH For One Module |
Function: |
Stacked Lifepo4 Battery Energy Storage System |
Feature: |
Stacked 7pcs LFP Battery Module Max |
Cycle Life: |
10 Years Life Cycle. |
Compatible Inverter: |
Goodwe,Sol-Ark,SRNE,DEYE |

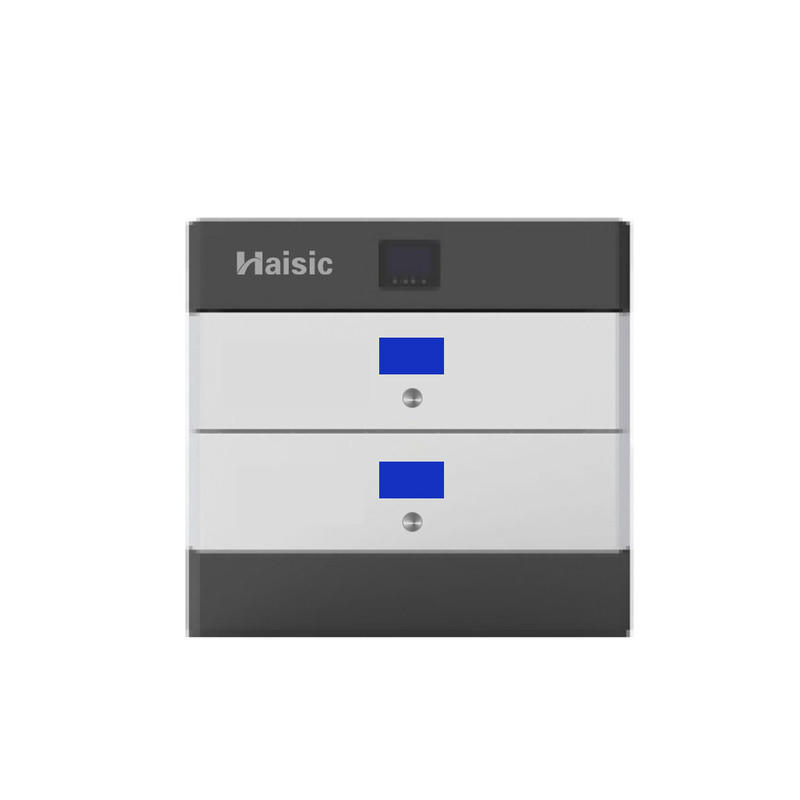

China manufacturer 5kwh 10kwh 20kwh lifepo4 battery for home energy storage system,inlcuded inverter 5Kw.
Spec:
| Type/Parameter | HS-JT5000WP2 | HS-JT5000WP3 | HS-JT5000WP4 | HS-JT5000WP5 | HS-JT5000WP6 | HS-JT5000WP7 |
| Module Number | 2 | 3 | 4 | 5 | 6 | 7 |
| Rated Voltage(V) | 51.2 | |||||
| Rated Capacity(Ah) | 100 | |||||
| Voltage Range(V) | 44.8-56 | |||||
| Rated Energy(Wh) | 10240 | 15360 | 20480 | 25600 | 30720 | 35840 |
| Standard Discharge Current(A) | 150 | 150 | 150 | 150 | 150 | 150 |
| Single-phase hybrid inverter | ||||||
| EPS Rated power(W) | 5500 | |||||
| AC output voltag(V) | 220-240 | |||||
| PV Max. power(W) | 6000 | |||||
| MPPT voltage range(V) | 160~450 | |||||
| Output frequency (Hz) | 50Hz/60Hz | |||||
| Display | 4.3 inch touch IPS LCD | |||||
| Physical Parameter | ||||||
| Dimension:(L*W*H) | 580*500*530 | 580*500*692 | 580*500*854 | 580*500*1016 | 580*500*1178 | 580*500*1340 |
| Weight(kg) | 116 | 168 | 220 | 272 | 324 | 376 |
| IP | IP55 | |||||
| Charge Temperature Range(℃) | 0~45 | |||||
| Discharge Temperature Range(℃) | -20-60 | |||||
| Installation Method | Floor-mount | |||||
| Service Life | ||||||
| Cycle Life | ＞6000(0.5C @25℃,80% DOD) | |||||
| Design Life (Year) | 15 | |||||
| Certification | ||||||
| Safety & Certification | IEC62109(inverter),IEC62619(battery module),CE,FCC, ROHS | |||||
Feature:
Images:
Why Choose US:
1. We offer one-stop power solutions, which saves design time and cost for customer:
-- Pack design / External Case design / BMS design
2. Strict quality control system which enhances customers' competitiveness:
-- 100% PCM test by IQC
-- 100% Capacity test by OQC
3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock
-- 8h response & 48h solution
4. Experienced R&D team, be customer's professional power solution consultant:
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Powerful ODM Ability to Afford Customized Design Requirement
